Tykoflex/Joint closures/Joint Closure OPGW 3H+2P
Search products

Joint Closure OPGW 3H+2P

Product image Joint Closure OPGW 3H+2P
Product sheet Joint Closure OPGW 3H+2P

Downloads

Installation instruction Telecombox T240 IP69K Approval Fibercapacity Multicassette Installation instruction Multicassette Installation instruction

Joint closures

Joint Closure OPGW 3H+2P

Part no.

11160751-11160787

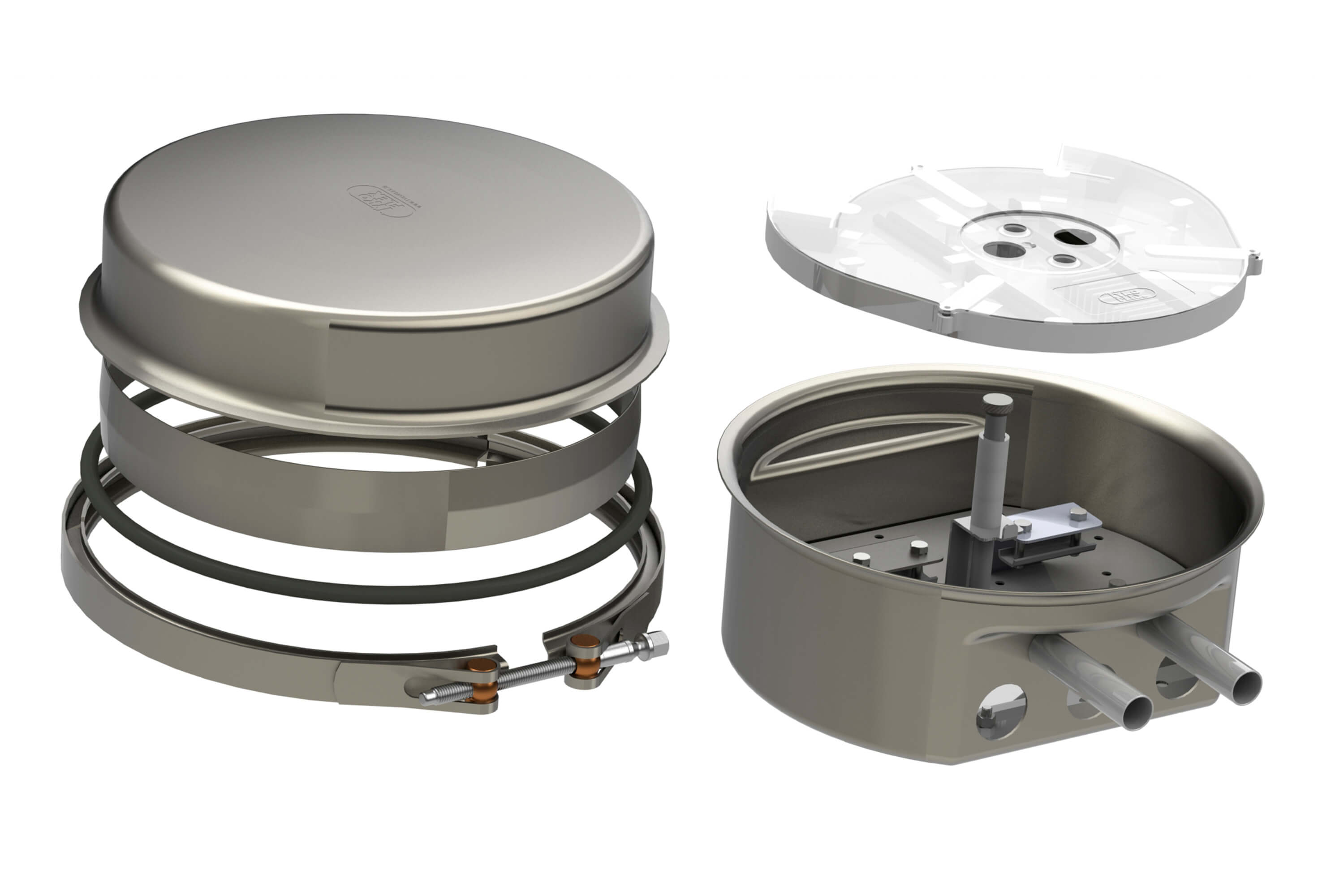

The Joint Closure OPGW 3H+2P model has three open holes for customer adaptation and two pre-sealed ports. The closure is suitable for use above ground attached to high voltage towers, poles, walls or other support structures. The closure comes with two fixed 16mm pre-sealed ports intended for ground cables and three holes for optional end plugs/ and or cable bushings which are selected separately.  The closure is equipped with cable strength member clamps, splice protectors and cassettes. The number of fibres will determine the number of cassettes to be used. Please choose a suitable joint closure for your fibre cables as specified in the table below. Depending on the cable type that will be used, the closure will need to be equipped with a choice of accessories, i.e. bracket, clamp and FIMT.

The tables below will help you to determine the necessary accessories for the OPGW 3H+2P. The OPGW 3H+2P is always equipped with the articles specified in the table basic configuration.

If your cable specification is not covered by the tables, please contact Tykoflex.

Configuration 24 or 36 f / cassette

Part number OPGW 3H + 2P 24 fibre No. of cassettes No. of splice protectors
11160751 T240/50 OPGW 3H+2P 24/24F 1 25
11160752 T240/50 OPGW 3H+2P 48/24F 2 50
11160754 T240/50 OPGW 3H+2P 96/24F 4 100
11160757 T240/70 OPGW 3H+2P 144/24F 6 150
Part number OPGW 3H + 2P 36 fibre No. of cassettes No. of splice protectors
11160781 T240/50 OPGW 3H+2P 36/36F 1 40
11160782 T240/50 OPGW 3H+2P 72/36F 2 75
11160784 T240/50 OPGW 3H+2P 144/36F 4 150
11160787 T240/70 OPGW 3H+2P 216/36F 6 220

Basic configuration

Bottom part 240 3 hole + 2 inlet
Lid 240/50/70
Support sleeve 240
O-ring 239.1x8 EPDM
V-clamp 240
Interior fittings
Cable tie 100x2.5mm
Nut Nylock M6 Din 985 A-4
Washer 6.4x18x1.6
Silica gel 10 g
Wellbox 240/50/70
Emery cloth
Instruction OPGW mastic
Instruction T240 Swedish/English
Instruction Multicassette and Emery cloth

FIMT

Product Part no.
FIMT Kit S-tub 1.93-2.33 11 218 700
FIMT Kit S-tub 2.4-2.8 mm 11 218 702
FIMT Kit S-tub 2.7-3.4 mm 11 218 704
FIMT Kit S-tub 3.2-3.9 mm 11 218 706
FIMT Kit S-tub 4.1-5.2 mm 11 218 708

Cable clamp

Product Part no.
Cable clamp 1×25 mm PA 11 218 210
Cable clamp 2×25 mm PA 11 218 212
Cable clamp 3×25 mm PA 11 218 214
Cable clamp 4×25 mm PA 11 218 216
Cable clamp Ø 6,0 mm PA 11 218 218
Cable clamp Ø 8,0 mm PA 11 218 220
Cable clamp Ø 10,0 mm PA 11 218 222
Cable clamp Ø 12,7 mm PA 11 218 224
Cable clamp Ø 13,7 mm PA 11 218 226
Cable clamp Ø 14,0 mm PA 11 218 228
Cable clamp Ø 16,0 mm PA 11 218 232
Cable clamp Ø 17,1 mm PA 11 218 234
Cable clamp Ø 18,0 mm PA 11 218 236
Cable clamp Ø 19,0 mm PA 11 218 238
Cable clamp Ø 20,0 mm PA 11 218 240
Cable clamp Ø 21,3 mm PA 11 218 242
Cable clamp Ø 22,0 mm PA 11 218 244
Cable clamp AL 5,0-6,0mm 11 218 253
Cable clamp AL 7,0-8,0mm 11 218 254
Cable clamp AL 9,0-10,0mm 11 218 255
Cable clamp AL 11,0-12,0mm 11 218 256
Cable clamp AL 13,0-14,0mm 11 218 258
Cable clamp AL 14,0-15,0mm 11 218 259
Cable clamp AL 16,0-17,0mm 11 218 261
Cable clamp AL 17,0-18,0mm 11 218 262
Cable clamp AL 15,0-16,0mm 11 218 263
Cable clamp AL 19,0-20,0mm 11 218 264
Cable clamp AL 21,0-22,0mm 11 218 266
Cable clamp AL 24,0-25,0mm 11 218 269
Cable clamp AL 10,0-11,0mm 11 218 271

Cable bushing – Warm

Product Part no.
End plug PG21 SS 11 208 010
Cable bushing kit 2x18mm 11 212 100
Cable bushing kit 1x24mm 11 212 132
Cable bushing kit 1×24 OPGW 11 212 134
Shrink tube 34/8-200mm 11 219 159

Bracket

Part No. Type of bracket
11214106 Pole bracket 800 OPGW wood pole
11214110 Pole bracket 800 for OPGW steel tower
11214114 Mounting plate power line Fzb
11214116 Mounting plate power line, Fzb
11214120  Mounting plate stainless teel

Brackets for OPGW are selected from this table. The selection depends on whether the pole/tower is made of wood or steel.

Accessories & tools

Product Part no.
Multicassette fibre organizer 36f/72f, 2-pcs 11 202 202
Tool kit Telecombox 11 216 020
Cassette holder horizontal 11 216 100
Pressure test kit T240 11 216 115
Locking cap for padlock 11 218 056
Splice protector 45 mm 100-pack 11 218 346
