Joint Closure TBXL R

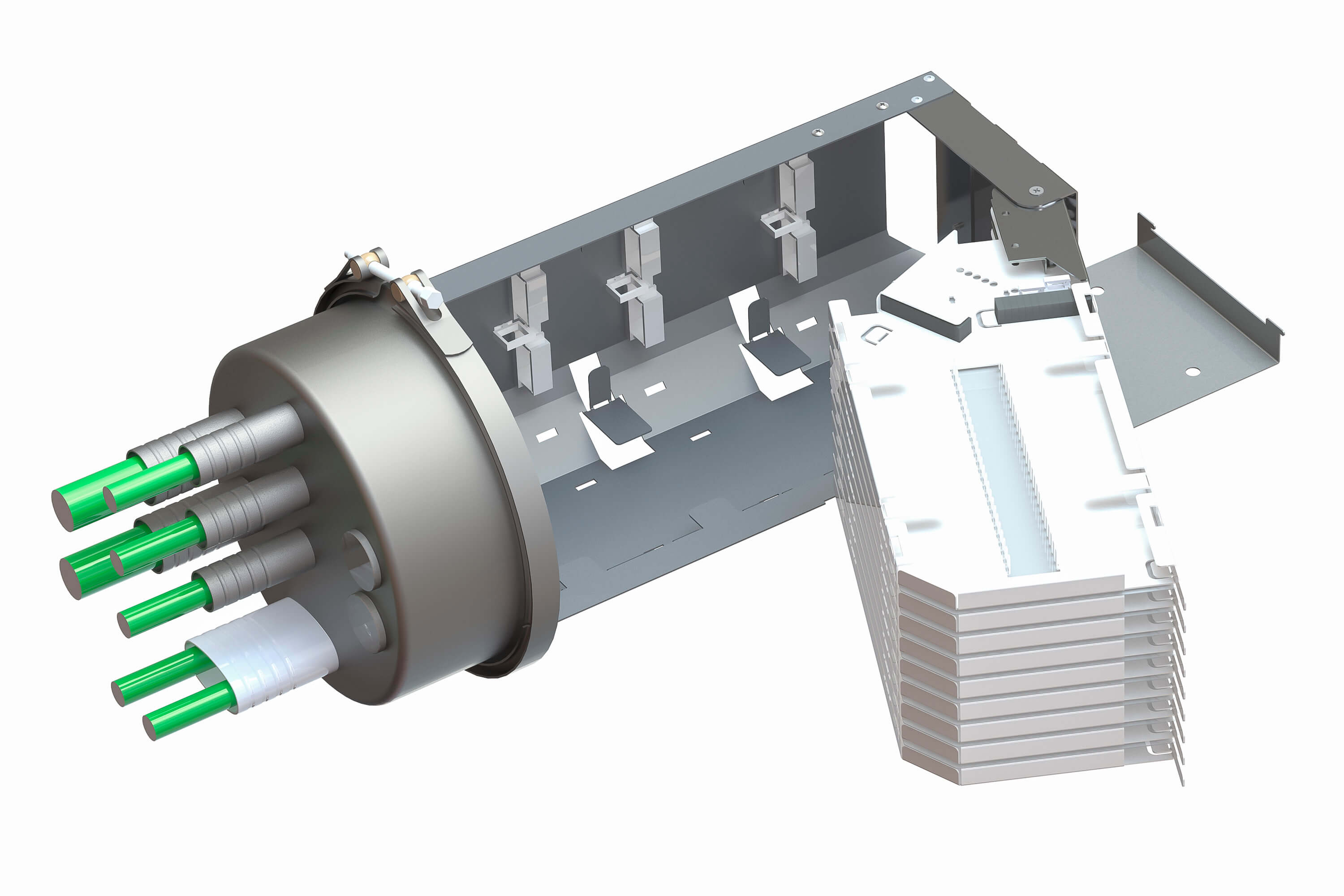

Product image Joint Closure TBXL R
Product sheet Joint Closure TBXL R

Joint closures

Joint Closure TBXL R

Part no.

11101005

High fibre count up to 1728 fibres

Joint Closure TBXL R is developed for ribbon fibre cables for up to 1728 fibres. Joint Closure TBXL R is delivered with one open oval inlet 63×31 mm (for mid-span access) and two ID 35 mm sealed cable inlets, four ID 25 mm sealed cable inlets and two open holes.

TBXL R is equipped with nine permanent pivoting splice trays for a maximum of 192 fibres (8-ribbon). The closure is equipped with cable strength member clamps and splice protectors. Brackets for installation are available as options and ordered separately.

Together with a locking cap, the closure can easily be locked with a padlock. The closure TBXL R is delivered with heat shrink tube and branch-off clip for the oval inlet and with the articles specified in the table below, basic configuration.

Configuration TBXL R ribbon fibre

Part number Type No. of cassettes Max No. of fibres
11162003 T240/270 TBXLR 1728/1728F 9 1728

Basic configuration

Bottom part 240/TBXL
V-clamp 240
Support sleeve 240
O-ring 239.1x8 EPDM
Interior fittings TBXL
Pivoting splice trays
Branch-off clip
Heat shrink WCSM 54/16 L = 200 mm
Branching kit for centre tube cables
Emery cloth
Silica gel 10 g
Cable tie 100x2.5mm
Instruction TBXL

Cable bushing – Cold method

Product Part no.
End plug PG21 SS 11 208 010
Cable bushing kit TKT 7x7mm Metal 11 212 840
Cable bushing kit TKT 7x7mm PA 11 212 842
Stuffingbox TKT M12x1 11 212 847
Cable bushing kit TKN-O 4x 5,0-7,0 11 212 851
Cable bushing kit TKN-O 2x 5,5-7,2 11 212 852
Cable bushing kit TKN-O 4x 6,5-8,5 11 212 853
Cable bushing kit TKN-O 4x 7,7-9,5 11 212 854
Cable bushing kit TKN-O 2x 10-12,0 11 212 855
Cable bushing kit TKN-L 24x 1,8-4mm 11 212 860
Cable bushing kit TKN-L 12x 4-7mm 11 212 861
Cable bushing kit TKN-L 4x 7-9mm 11 212 862

Cable bushing – Warm

Product Part no.
End plug PG21 SS 11 208 010
Cable bushing kit 6×6 11 212 018
Cable bushing kit 4×10 11 212 040
Cable bushing kit 1x10mm 11 212 050
Cable bushing kit 2×10 11 212 060
Cable bushing kit 3x12mm 11 212 070
Cable bushing kit 2x18mm 11 212 100
Cable bushing kit 1x24mm 11 212 132
Cable bushing kit 1×30 11 212 145
Split Cable bushing kit 2×18 11 212 350

Accessories & tools

Product Part no.
Tool kit Telecombox 11 216 020

Required accessories

Part No. Splice protectors, 4/8/12
11218080 Ribbon fibre 4/8 25-p
11218082 Ribbon fibre 4/8/12 25-p
11218088 Ribbon fibre 4/8 100-p
11218090 Ribbon fibre 4/8/12 100-p

Optional accessories

Part No. Type
11216123 Work holder (one time)
11xxxxxx Bracket
11219159 Heat shrink 34/8
